Assure Industrial Gate Solutions manufacturers and installs its own products to ensure an industry superior experience!

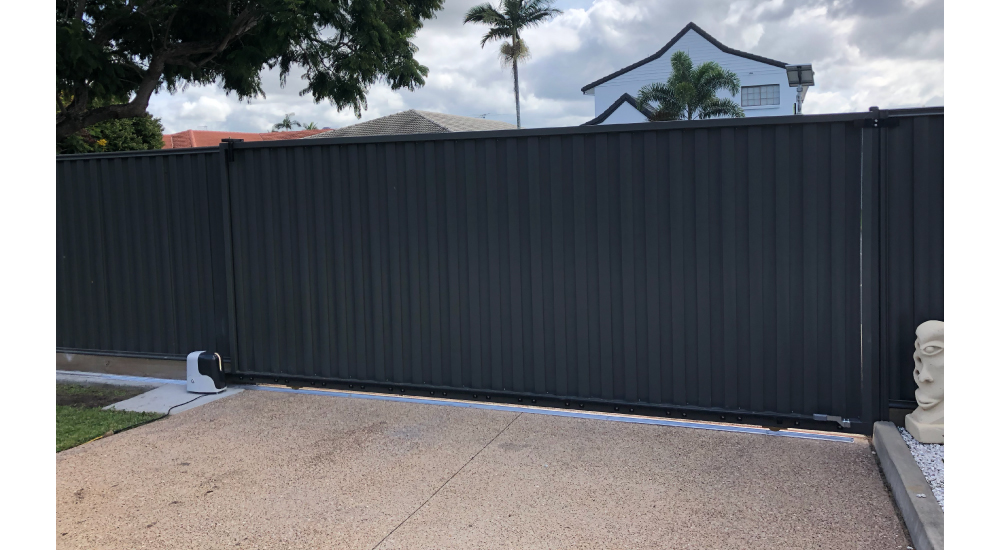

The Assure Tracked Sliding Gate System is designed specifically for industrial and light commercial environments whereby security is still important, but duty cycle and speed of operation are less significant factors.
Depending upon the length of the gate and the duty cycle required, Assure Industrial Gate Solutions offers a range of industrial and commercial gate motors and controls.
For large gates, and/or those with more frequent usage we recommend our proven, three phase, 100% duty cycle, motor and controller package. A choice of industry proven motor/control packages exist from .55Kw to .75Kw, and above.
Add industrial quality electrical componentry for critical items such as logic controls, power supply, frequency invertor, and gate sensors, you’ll be assured of a reliable, and easily serviceable, security gate package.
Additional traffic management and safety systems may be added to address your specific site security requirements.
The Assure Tracked Sliding Gate System is designed to provide robust construction using only heavy-duty materials to ensure longevity and a thirty-year product life.
Our tracked sliding gate systems comprise of the following important mechanical modules. The main support frame/portal, the gate leaf, end-post and running track. When the support frame/portal and running track are bolted upon an engineered concrete slab, it provides the principle support for the gate leaf.
These gates may be built to cover, in standard configurations, up to 12-metres. Further the gates may be made to varying heights to suit customer requirements and to match the type of security fencing used. Our standard industrial design being fully welded 26.9O.D. pipe pickets at 125mm centres and topped with robust crimped spears to deter climbing. Alternatively, your gate may be topped by three rows of barb wire, electric fence wiring, flat top pickets, or with no topping whatsoever.
And as we are the manufacturer, other top of gate variations may be built to suit your needs.
In terms of a suitable and durable finish our hot dip galvanised product is highly recommended. Especially for those corrosive areas seaside. Nevertheless, your gates made be also made from pre galvanised steel and painted to suit.
Should high speed and high usage rates be essential, then a cantilever sliding gate system should be seriously considered.
The Assure Tracked Sliding Gate System combines sound yet simplified engineering while still combining the vital gate elements such as, robustness of construction and reliability. This system also offers significant flexibility to suit your requirements with respect to the choice of gate finishes and the performance requirements of the gate motor and controls.
As with all our gate designs, Assure Tracked Gate Systems combine an aesthetically pleasing design with a proven quality componentry. Our gate systems may be custom designed to suit your individual gate operational requirements, and indeed, your budget.
At Assure we fundamentally believe that safety should never be optioned. Our safety focus has permitted our sliding gate systems to operate with complete confidence.
Gate safety can be assured by a sophisticated array of quality products that provide layered, and pro-active protection. These include vehicle safety loops, photo electric beam sets, flashing lights, audible buzzers and appropriate safety signage
| Gate Type | Gate Specifications |
|---|---|
| Gate Width | 3-metres to 12-metres (variable) |
| Gate Height | 1800mm, 2100mm, 2400mm & custom |
| Gate Clearance | 50mm to 60mm (variable) |
| Gate Support Frame/portal | 100mm to 150mm sq RHS (variable) |
| Gate Support Frame/portal | 100mm sq RHS |
| Gate End/Receiver Post | 100mm sq RHS |
| Gate Tower | 100mm sq RHS |
| Gate Vertical Pickets | 26.9 O.D. round spear top @125mm centres, or 25mm SHS, spear top at @125mm centres |
| Gate Leaf Topping | Sear top, flat top, 3 barb, & electric fencing |
| Gate Finishes | Hot dip galvanised and painted |
| Gate Bearings | Fully sealed |
| Gate Rollers | Black PVC nylon |
| Gate Leaf Track | Steel or aluminium |
| Gate Racking | 90mm standard (variable) |
| Roller Sizes | Zinc plated mild steel – 40 ton rated |
| Motor | .55kw, .75Kw or 24-volt (variable) |
| Motor Release | Rotating dial, tethered spanner, lever (variable) |
| Duty Cycle | Ranging from 100% to 80% (variable) |
| Control Logic | PLC to logic board (variable) |
| Drive Logic | Depending upon motor/gearbox choice (variable) |
| Drive Rack | 25mm sq zinc plated mild steel |
| Control Logic | True PLC 24v DC |
| Drive Logic | VSD 240v single phase to 240v three phase |
| Control Enclosure | Painted steel, stainless steel, UV rated plastic (variable) |
| Position Sensing | From proximity sensors to limit switching |
| Safety Pedestrian | Photo electric cells, 24v DC, fail safe |
| Safety Vehicle | Inductive loops and detectors, 24v DC fail safe |
| Safety Visual | Strobe light |
| Safety Audible | Piezo adjustable |
| Power Requirement | 240v, 15 amp supple (variable) |
| Current Draw | 4 amp running with 8 amp start up (variable) |
| Gate Speed | Adjustable – fully dependent upon motor size, gate width, height, and weight factors. |
| An Electric Fencing Option is Available | |
| Solar Power is Available in certain circumstances |
